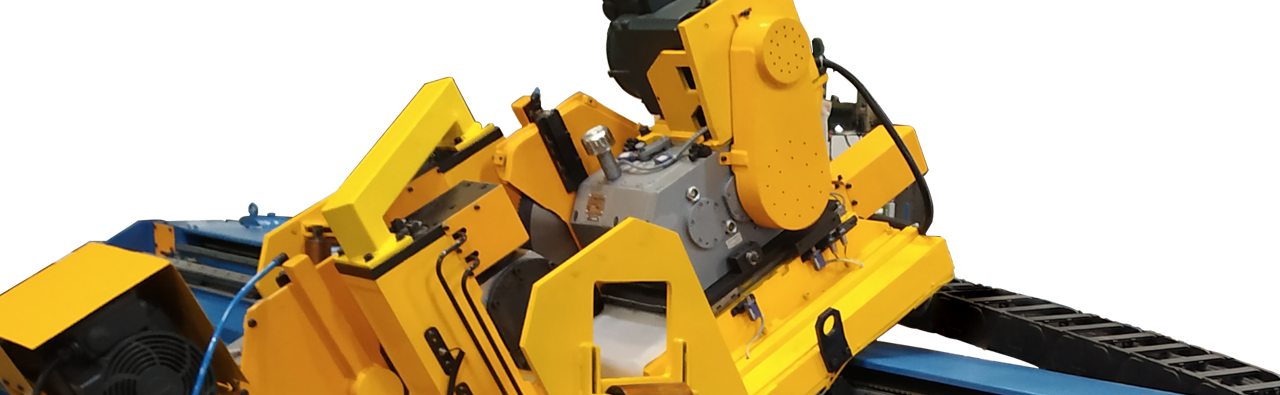

A versatile solution for tube cutting—the twin blade Cold Saw Cut-off, also known as a Flying Saw, uses two blades moving linearly inwards to cut the tube.
This Cut-off delivers a relatively high speed and efficient cutting in comparison to the prevalent Orbital Cutting mechanism.
These cut-offs are vey well suited for applications requiring ID Bead Removal as the blades never fully pierced the hardened scarfed
bead – thereby resulting in excellent blade life.
With all features as that available in Rollform’s single blade Cold Saw Cut-offs – this machine has gained tremendous traction in recent years.
Specifications
| Model |
Tube OD (mm) |
Tube Thickness (mm) |
Mill Speed (m/min) |
| Min |
Max |
Min |
Max |
| RCC 170 | 60.3 | 170 | 1.0 | 9.0 | 90 |
| RCC 220 | 88.9 | 220 | 1.0 | 9.0 | 60 |
Features
The machine offers 2 blades with extensive control over feed, speed and rpm.
Option to use single blade for cutting small diameter tubes for better efficiency.
Optimal line speed with a high degree of length accuracy.
The machine can use both HSS and TCT Saw Blades – giving the user full flexibility.
Versatile machine with compact size and footprint in comparison to the conventional method of orbital cutting for the given size range.
Heavy duty design and rugged build quality for minimal vibrations while cutting.
